Vantage 5000 SCADA HV

Własność
Protocol	-
Maksymalny przepływ	6600 ml/min
Maksymalne ciśnienie (strona tłoczna)	7 bar
Turn down ratio	4096:1
Protection Class	IP66, NEMA 4X
Display & Programming	Intuitive 110mm Full Colour Touch Screen LCD
Protection	Opto isolated 115V AC
Backup	USB v2 dataport
Analogue Inputs & Outputs	0-10V, 4-20mA, Frequency
Control Inputs	7
Status Outputs	4
Tube Failure Detection	Standard
Prędkość	400 rpm
Power Supply	85-265V 50/60Hz 1 Phase
Certyfikaty	FDA
Maksymalna wielkość cząstek stałych	2.5 mm

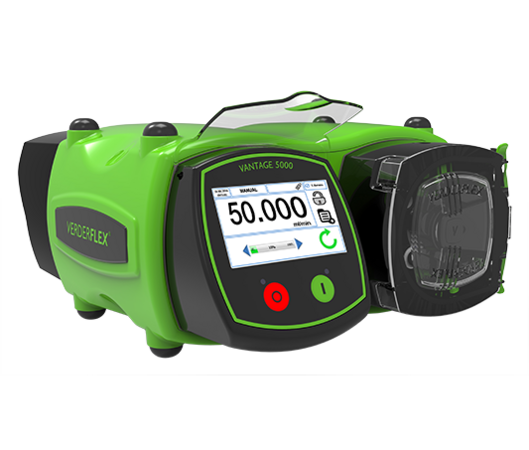

The Verderflex Vantage 5000 SCADA HV is the next generation in 115V AC opto-isolated remotely controlled cased drive tube pumps combining precision dosing and dispensing accuracy with high discharge pressures, an intuitive touch screen user interface, real time event clock and a USB data backup port. Ideal for SCADA systems, control signal inputs & outputs include 0-10V, 4 to 20mA & proportional flow modes, 7 control volt free inputs & 4 volt free status outputs. The pump works with loose tubing at up to 2 bar or with dedicated Quick Release or Mini TriClamp tube assemblies at all pressures.

• Verderflex_Vantage5000__INT_English_Datasheet.PDF
• Verderflex_Vantage5000__INT_English_Manual.pdf
• Bedienungsanleitung Verderflex Vantage 5000
• Verderflex_Vantage5000__FR_French_Manual.pdf
• Verderflex_Vantage5000__ES_Spanish_Manual.pdf
• Verderflex_INT_EN_Brochure.pdf
• Verderflex_Vantage5000__INT_English_Brochure.pdf
• Verderflex_Vantage5000_APP_INT_English_Brochure.pdf
