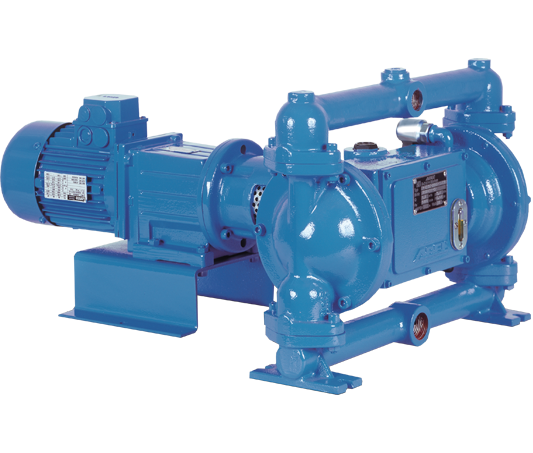

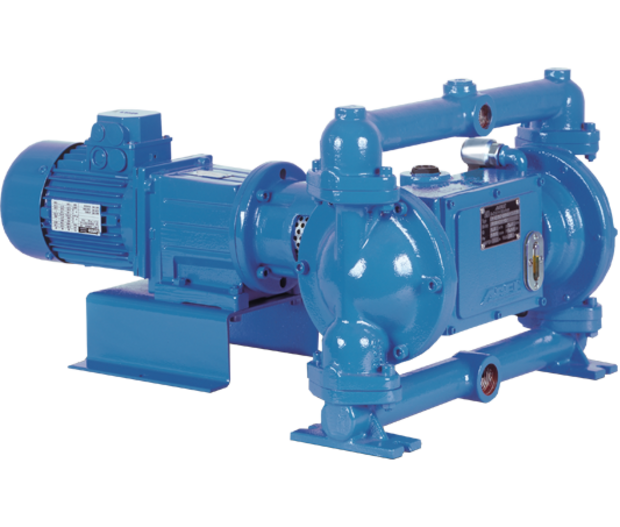

Verderbar EM
Verderbar EM pumps includes electromechanical double diaphragm pumps (diaphragm) for use in a variety of industrial processes. The integrated metal core of each of the membranes is completely covered by the membrane material in the area of the pump, thereby ensuring to minimize the possibility of contamination of the pumped liquid and considerably increases the lifetime of the membrane. Verderbar EM pumps have a rugged construction and high reliability.
Verderbar EM types
View
 |
|
|
|
|
|
|
|
|
|
|
EM 015 |
EM 020 |
EM 025 |
EM 040 |
EM 050 |
EM 080 |
EM 100 |
EM 125 |
EM 150 |
|
| View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | |
| Max. flow |
1.25 m3/h
|
2.5 m3/h
|
5 m3/h
|
10 m3/h
|
20 m3/h
|
40 m3/h
|
60 m3/h
|
80 m3/h
|
120 m3/h
|
| Max. discharge pressure |
8 bar
|
8 bar
|
8 bar
|
8 bar
|
8 bar
|
5.7 bar
|
4.5 bar
|
5.7 bar
|
4.5 bar
|
| Max. particle size |
3 mm
|
4 mm
|
6 mm
|
8 mm
|
10 mm
|
12 mm
|
15 mm
|
12 mm
|
15 mm
|
| Suction port |
3/4 in
|
1 in
|
1 1/2 in
|
2 in
|
3 in
|
4 in
|
5 in
|
6 in
|
8 in
|
| Discharge port |
1/2 in
|
3/4 in
|
1 in
|
1 1/2 in
|
2 in
|
3 in
|
4 in
|
5 in
|
6 in
|
| Weight |
33 Kg
|
62 Kg
|
120 Kg
|
165 Kg
|
340 Kg
|
895 Kg
|
1750 Kg
|
2520 Kg
|
4160 Kg
|
| Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet |
