VDKM

VDKM pumps are ideally suited for gently pumping solid food products in water, such as whole or cut vegetables (beans, peas, carrots, cucumbers, cabbage, maize, onions, etc.), fruit (apples, pears, cherries) and sea creatures (shrimp, mussels, cockles).

  • Properties

    Property
    Max. flow 180 m3/h
    Differential head 13 m
    Max. Inlet pressure -
    Viscosity 100 cP
    Max. temperature 80 °C
    Impeller type Channel impeller
    Max. free passage 85 mm
    Max. drive power 5.5 kW
    Speed 1450 rpm
    Available frequency 50/60 hz
    Materials wetted parts Stainless steel 304 or similar
    Mechanical seal configuration Single
    Available O-ring materials NBR (FDA)
    Connections Industrial
    Surface Finish industrial finish: welds are not hand polished final surface treatment: electropolished
    Certificates 1935/2004 EC. FDA. EAC

  • Description

    VDKM pumps are ideally suited for gently pumping solid food products in water, such as whole or cut vegetables (beans, peas, carrots, cucumbers, cabbage, maize, onions, etc.), fruit (apples, pears, cherries) and sea creatures (shrimp, mussels, cockles).

  • Downloads

Pump Series VDKM

Thanks to the large free passage, the VDKM pumps are ideally suited for gently pumping solid food products in water, such as whole or cut vegetables (beans, peas, carrots, cucumbers, cabbage, maize, onions, etc.), fruit (apples, pears, cherries) and sea creatures (shrimp, mussels, cockles)…

The pumps are made of stainless steel and electropolished, so in terms of hygiene (HACCP) and rust resistance, a guarantee for the clean pumping of your food products.

Production takes place in Packo's ISO 9001 and 14001 controlled company in Diksmuide Belgium.

Application areas

The VDKM pump makes it possible to transport food products through a closed tube. This is not only more hygienic, but it also saves enormous space compared to the traditional conveyor belts, which are open and also obstruct free passage in the company.

Your benefits

  • Gentle and damage-free pumping
  • Easy maintenance: short downtimes
  • Extremely large passage
  • Electropolished stainless steel 304L: no rusting & easy to clean
  • Monobloc design: space saving

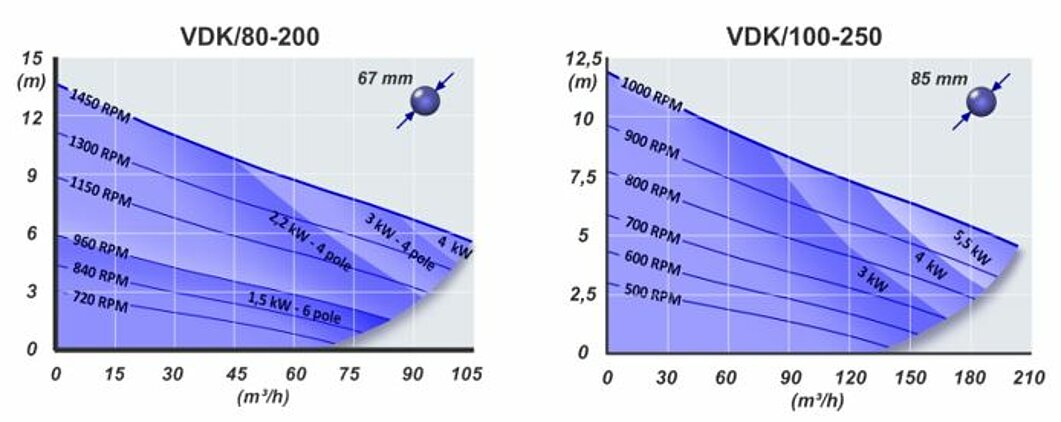

Performance Curves
