Turbine Mixers
Turbine agitator exclusively designed by ITC with 6 jets, three of them radial with centrifugal movement to produce a rotation of liquid, and three of them axial to stir the bottom.
Turbine Mixers types
View
 |
 |
 |
 |
 |
|
|

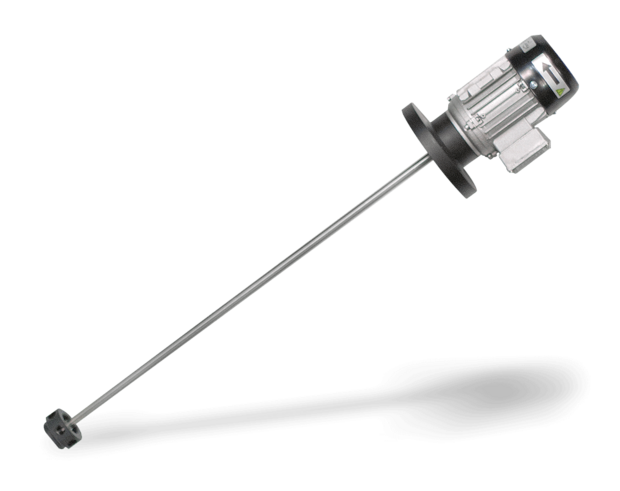

Mixer 0,6 |
Mixer 1,1 |
Mixer 1,3 |

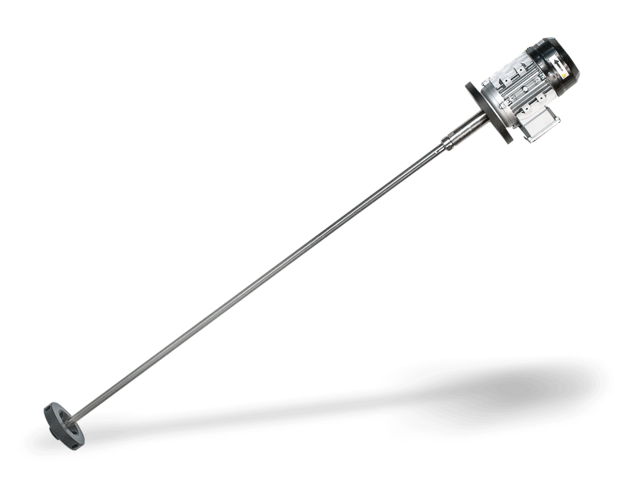

Mixer 1,5 |
Mixer 2,0 |
|
| View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | |
| Max. Agitation Capacity |
0.2 m3 / 52 gal
|
0.8 m3 / 210 gal
|
3 m3 / 800 gal
|
10 m3 / 2600 gal
|
7 m3 / 1800 gal
|
| Shaft material |
AISI 304 / P.E.
|
AISI 304 / P.E.
|
AISI 304 / P.E.
|
AISI 304 / P.E.
|
AISI 304 / P.E.
|
| Turbine material |
P.P.
|
P.P.
|
P.P.
|
P.P.
|
P.P.
|
| Max. drive power |
1ph: 220V 50Hz. 115/220V 60Hz - 3ph: 220/380V 50/60Hz - DC: 12 Vdc
|
1ph: 220V 50Hz. 115/220V 60Hz - 3ph: 220/380V 50/60Hz - DC: 12 Vdc
|
1ph: 220V 50Hz. 115/220V 60Hz - 3ph: 220/380V 50/60Hz - DC: 12 Vdc
|
1ph: 220V 50Hz. 115/220V 60Hz - 3ph: 220/380V 50/60Hz - DC: 12 Vdc
|
1ph: 220V 50Hz. 115/220V 60Hz - 3ph: 220/380V 50/60Hz - DC: 12 Vdc
|
| Viscosity |
80 MPa
|
80 MPa
|
80 MPa
|
80 MPa
|
80 MPa
|
| Max. temperature |
50 °C
|
50 °C
|
50 °C
|
50 °C
|
50 °C
|
| Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet |
