• 性能

    属性
    最大流量 189 l/min
    最大出口压力 8.6 bar
    Air conn. 1/2" BSP/NPT
    Liquid conn. Combi flange DIN PN10/16
    Maximum suction lift (dry) 4.9 m wc
    认证 ATEX
    Liquid conn. DN25 - 1 Ansi 150
    Maximum suction lift (wet) 8.8 m wc
    最大颗粒尺寸 3.2 mm
    粘度 10000 mPa.s
    最高温度 82 °C
    Materials liquids parts Polypropylene, Conductive Polypropylene, Kynar
    Materials valves seats Acetal, Aluminium, Buna N, Geolast, Polypropylene, Kynar(PVDF), Hytrel, Santoprene, Stainless Steel, Viton
    Materials valve balls Acetal,Buna N, Geolast, Hytrel, Santoprene, Stainless Steel, Viton, PTFE, Neoprene, Weighted Neoprene
    Materials diaphragms PTFE (2 piece), PTFE (overmolded), Hytrel, Buna-N, Santoprene, Viton, Geolast, Neoprene (overmolded)
    Material center section Polypropylene, Conductive Polypropylene
  • 描述

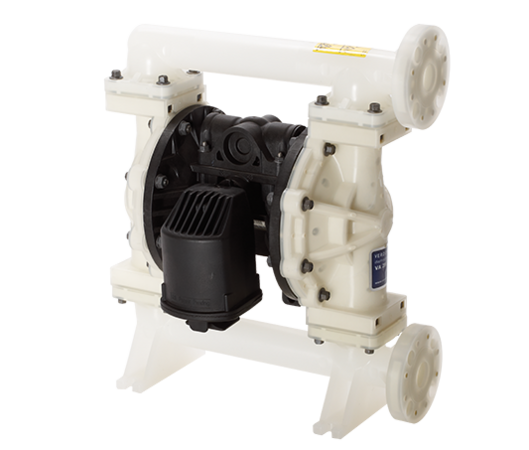

    VA25 (HE) 非金属型气动隔膜泵,结构紧凑,高效运行,非常适用于介质的输送/排空,或做为基础加药泵。
