• Propriedades

    Property
    Max. flow 156 l/min
    Max. discharge pressure 7 bar
    Max. particle size 12 mm
    Viscosity 10000 cP
    Certificates EN 1935. FDA. ATEX
    Air conn. BSP R 1/4”
    Liquid conn. DIN 11851 DN40
    Liquid conn. Tri-clamp 1,5” (ASME BPE)
    Maximum suction lift (dry) 2 m wc
    Maximum suction lift (wet) 9 m wc
    Max. temperature 120 °C
    Materials housing SS316L - Ra<0,8µm
    Material center section Polyamide (PA6), Conductive polyethylene (PE-Cond.)
    Materials valves seats SS316L & PTFE, SS316L & EPDM FDA
    Materials valve balls EPDM, PTFE
    Materials diaphragms PTFE Overmold, EPDM Overmolded
  • Descrição

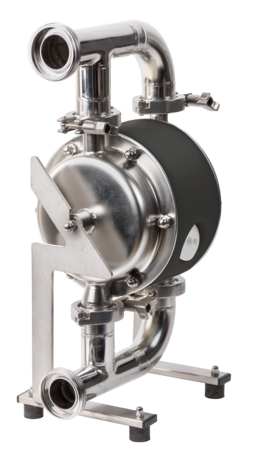

    Verderair HCP25 SB hygienic double diaphragm pump for hygienic applications at the end of theproduction process in various industry such as beverage, pharmaceutical, cosmetics, dairy, food and brewery/winery.
