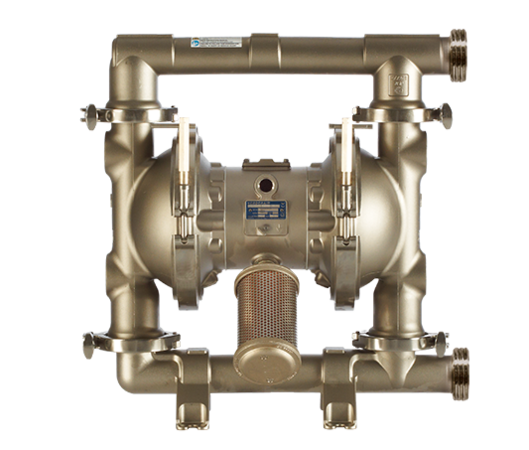

VA H40 FD

The Verderair HI-CLEAN VA-H40 FD为紧凑型气动隔膜泵，在食品和化妆品行业的卫生级流程中应用。适用于小流量运输/排空.

属性
最大流量	443 l/min
最大出口压力	8 bar
最大颗粒尺寸	4.8 mm
粘度	15000 cP
认证	EN 1935. FDA. ATEX
连接	Tri clamp and DIN
Air conn.	1/2" BSP/NPT
Liquid conn.	DIN11851 DN50
Liquid conn.	2 Triclamp (ASME(BPE))
Maximum suction lift (dry)	4.3 m wc
Maximum suction lift (wet)	8.8 m wc
最高温度	104 °C
Materials liquids parts	SS316 - Ra<3,2µm
Materials valves seats	SS with EPDM o-rings, SS with PTFE o-rings
Materials valve balls	Santoprene, PTFE, Weighted Neoprene
Materials diaphragms	PTFE (2 piece), PTFE (overmolded), Santoprene
Material center section	Aluminium, Stainless Steel
