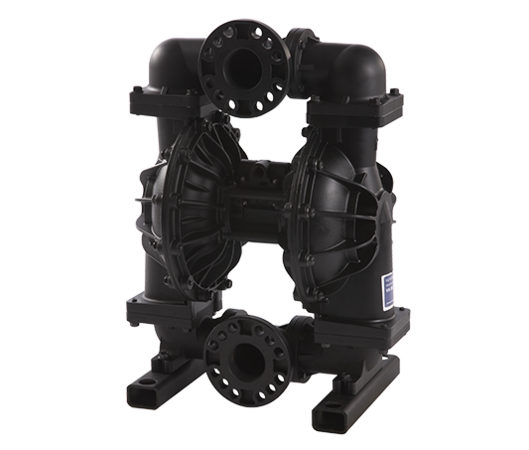

VA80 (HE) 金属型
VA80 (HE) 金属型气动隔膜泵，结构紧凑，高效运行，非常适用于介质的输送/排空，或做为基础加药泵。
-
性能
属性 最大流量 1200 l/min 最大流量 1200 l/min 最大出口压力 8.6 bar 最大出口压力 8.6 bar Air conn. 3/4" BSP/NPT Air conn. 3/4" BSP/NPT Liquid conn. 3" BSP/NPT Liquid conn. 3" BSP/NPT Maximum suction lift (dry) 2.4 m wc Maximum suction lift (dry) 4.9 m wc 认证 ATEX 认证 ATEX Maximum suction lift (wet) 8.5 m wc Maximum suction lift (wet) 8.5 m wc 最大颗粒尺寸 13 mm 最大颗粒尺寸 13 mm 粘度 25000 mPa.s 粘度 25000 mPa.s 最高温度 135 °C 最高温度 135 °C Materials liquids parts Aluminium, Stainless Steel Materials liquids parts Aluminium, Stainless Steel Materials valves seats Acetal, Aluminium, Buna N, Geolast, Polypropylene, Kynar(PVDF), Hytrel, Santoprene, Stainless Steel, Viton Materials valves seats Acetal, Aluminium, Buna N, Geolast, Polypropylene, Kynar(PVDF), Hytrel, Santoprene, Stainless Steel, Viton Materials valve balls Acetal,Buna N, Geolast, Hytrel, Santoprene, Viton, PTFE, Neoprene, Weighted Neoprene Materials valve balls Acetal,Buna N, Geolast, Hytrel, Santoprene, Viton, PTFE, Neoprene, Weighted Neoprene Materials diaphragms PTFE (2 piece), Hytrel, Buna-N, Santoprene, Viton, Geolast, Neoprene (overmolded) Materials diaphragms PTFE (2 piece), Hytrel, Buna-N, Santoprene, Viton, Geolast, Neoprene (overmolded) Material center section Polypropylene, Aluminum Material center section Polypropylene, Aluminum -
描述
VA80 (HE) 金属型气动隔膜泵，结构紧凑，高效运行，非常适用于介质的输送/排空，或做为基础加药泵。
