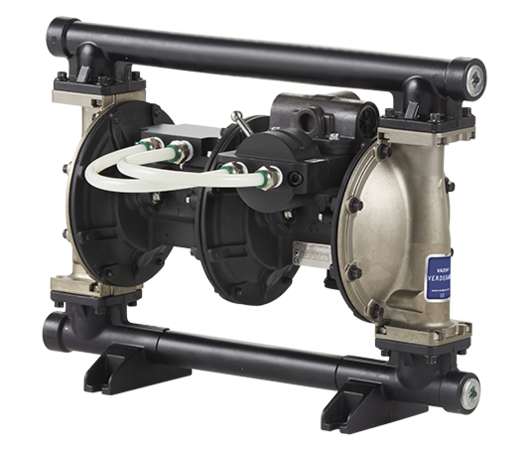

VA25 HP (DA)
Verderair VA25-HP(DA）是一种双向作用，出口压力与气源比是2:1的高压型隔膜泵（AODD），适用于压滤机应用。
-
性能
属性 最大流量 189 l/min 最大流量 189 l/min 最大出口压力 17.2 bar 最大出口压力 17.2 bar 认证 ATEX 认证 ATEX Air conn. 1/2" BSP/NPT Air conn. 1/2" BSP/NPT Liquid conn. 1" BSP/NPT Liquid conn. 1" BSP/NPT Maximum suction lift (dry) 4.9 m wc Maximum suction lift (dry) 4.9 m wc Maximum suction lift (wet) 8.8 m wc Maximum suction lift (wet) 8.8 m wc 最大颗粒尺寸 3.2 mm 最大颗粒尺寸 3.2 mm 粘度 10000 mPa.s 粘度 10000 mPa.s 最高温度 82 °C 最高温度 82 °C Materials liquids parts Aluminium, Stainless Steel Materials liquids parts Aluminium, Stainless Steel Materials valves seats Geolast, Santoprene, Stainless Steel Materials valves seats Geolast, Santoprene, Stainless Steel Materials valve balls Geolast, Santoprene, Stainless Steel, Weighted Neoprene Materials valve balls Geolast, Santoprene, Stainless Steel, Weighted Neoprene Materials diaphragms PTFE (2 piece), Buna N, Santoprene, Neoprene (overmolded) Materials diaphragms PTFE (2 piece), Buna N, Santoprene, Neoprene (overmolded) Material center section Polypropylene, Aluminum, Conductive Polypropylene Material center section Polypropylene, Aluminum, Conductive Polypropylene -
描述
Verderair VA25-HP(DA）是一种双向作用，出口压力与气源比是2:1的高压型隔膜泵（AODD），适用于压滤机应用。
