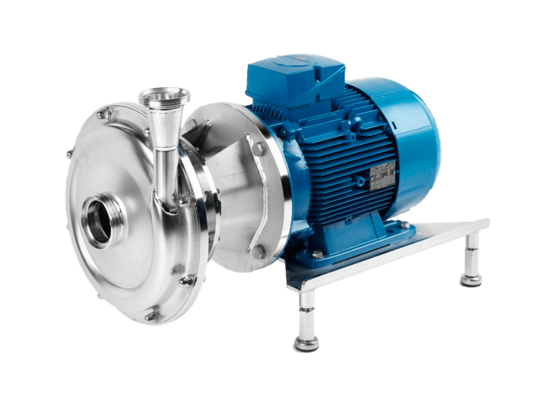

GFP
The multi-phase pump is a combination of a standard centrifugal pump and a liquid ring pump both mounted together on 1 motor and 1 shaft. The centrifugal pump is used for pumping the liquid and brings the main performance of the pump. When a gas-bubble starts to build up in the eye of the centrifugal impeller, it is evacuated by the liquid ring impeller. The pump has 1 suction and 2 discharges: a main discharge of the centrifugal pump and a smaller discharge of the liquid ring pump that functions as an air and foam vent. The air/foam vent is typically connected back to the suction vessel. The GFP multi-phase pump is typically used for foamig liquids and (viscous) liquids containing gas in the food-industry. Offering a solution to liquids that are difficult to pump with standard centrifugal pumps. E.g. starch slurries & proteins
-
性能
属性 最大流量 400 m3/h 最高自吸高度 30 m wc Max. Inlet pressure 10 bar 粘度 1000 cP 最高温度 140 °C 叶轮类型 Open or closed Max. gas content 30% 最大功率 45 kW 转速 1800 rpm 可用频率 50 / 60 Hz Materials wetted parts Stainless steel 316L or similar Mechanical seal configuration Single bellow, sterile Available material O-ring EPDM, FKM, FFKM 连接 EN1092-1 & ANSI flanges. DIN11851. SMS. RJT. Tri-Clamp Surface finish Electropolished 认证 FDA. EAC -
描述
The multi-phase pump is a combination of a standard centrifugal pump and a liquid ring pump both mounted together on 1 motor and 1 shaft. The centrifugal pump is used for pumping the liquid and brings the main performance of the pump. When a gas-bubble starts to build up in the eye of the centrifugal impeller, it is evacuated by the liquid ring impeller. The pump has 1 suction and 2 discharges: a main discharge of the centrifugal pump and a smaller discharge of the liquid ring pump that functions as an air and foam vent. The air/foam vent is typically connected back to the suction vessel. The GFP multi-phase pump is typically used for foamig liquids and (viscous) liquids containing gas in the food-industry. Offering a solution to liquids that are difficult to pump with standard centrifugal pumps. E.g. starch slurries & proteins
