FPP3

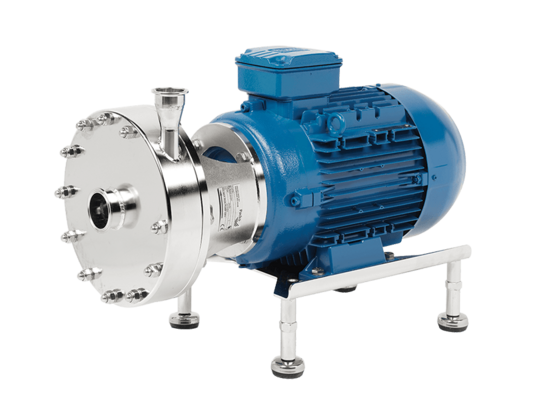

The food grade Packo stainless steel pumps of the FPP3 series are pumps made of solid, machined stainless steel 316L and are extremely suitable for high system pressure applications up to 40 bar. Typical applications can be found in reverse osmosis applications in all kind of food related applications such as whey filtration, CIP waste filtration, beer filtration, etc.
-
性能
属性 最大流量 350 m3/h 最高自吸高度 70 m wc Max. Inlet pressure 40 bar 粘度 1000 cP 最高温度 140 °C 叶轮类型 Closed Max. free passage 17 mm 最大功率 45 kW 转速 3000 / 3600 rpm 可用频率 50 / 60 Hz Materials wetted parts Stainless steel 316L or similar Mechanical seal configuration Single, quench, double Available material O-ring EPDM, FKM, FFKM 连接 Tri-Clamp connections Surface finish Hygienic quality, internal welds hand polished + electropolished 认证 1935/2004 EC. FDA. EAC -
描述
The food grade Packo stainless steel pumps of the FPP3 series are pumps made of solid, machined stainless steel 316L and are extremely suitable for high system pressure applications up to 40 bar. Typical applications can be found in reverse osmosis applications in all kind of food related applications such as whey filtration, CIP waste filtration, beer filtration, etc.
FPP3 泵系列
FPP3 系列食品级 Packo 不锈钢泵由坚固的 316L 不锈钢制成，非常适合高达 40 巴的高压系统应用。典型的应用是在各种食品相关应用中的反渗透应用，如乳清过滤、CIP 废水过滤、啤酒过滤等。
应用领域
Packo FPP3 系列高压泵主要用于反渗透 (RO) 应用，例如过滤受污染的 CIP 水、乳清等。它们还可用作各种撬装设备的增压泵。
您可以在几乎所有行业中找到它们的身影，包括乳制品行业、酿酒厂、饮料行业以及水处理行业。
