• Vlastnosti

    Vlastnosti
    Max. průtok 147 l/min
    Max. tlak (na výtlaku) 7 bar
    Max. velikost pevných částic 12 mm
    Viskozita 10000 cP
    Certifikáty EN 1935. FDA. ATEX
    Air conn. BSP R 1/4”
    Liquid conn. DIN 11851 DN40
    Liquid conn. Tri-clamp 1,5” (ASME BPE)
    Maximum suction lift (dry) 2 m wc
    Maximum suction lift (wet) 9 m wc
    Max. teplota 120 °C
    Materials housing SS316L - Ra<3,2µm
    Material center section Polyamide (PA6), Conductive polyethylene (PE-Cond.)
    Materials valves seats SS316L & PTFE, SS316L & EPDM FDA
    Materials valve balls EPDM, PTFE
    Materials diaphragms PTFE Overmold, EPDM Overmolded
  • Popis

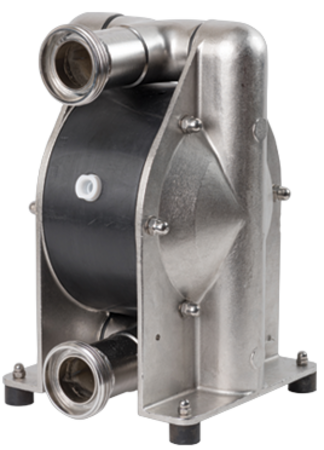

    Verderair HCP25 FD hygienic double diaphragm pump for hygienic applications at the beginning of the production process in various industry such as beverage, dairy, food and brewery/winery.
