VA-E80 Non Metallic

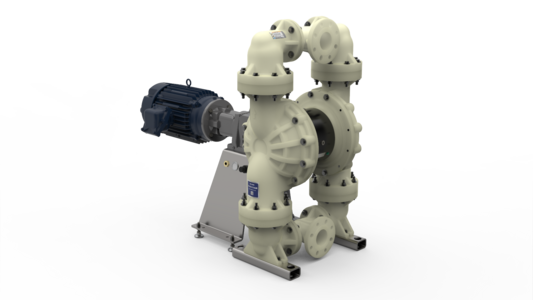

The Verderair VA-E80 non-metallic combines all advantages of an AODD with the energy-efficiency of an electric driven pump.
-
性能
属性 最大流量 830 l/min 最大出口压力 4.8 bar 最大功率 5.5 kW Liquid connections Combi flange DIN PN10/16, DN80 - 3" Ansi 150 认证 ATEX Maximum suction lift (dry) 4.8 m wc Maximum suction lift (wet) 9.4 m wc Max. solids particle size 12.7 mm 粘度 25.000 mPa.s 最高温度 104 °C Materials liquid parts Polypropylene, Conductive Polypropylene, Kynar Matarials valve balls Geolast, Polychloroprene Weighted, Santoprene, PTFE Materials diaphragms Geolast, Santoprene, PTFE/Polychloroprene 2-Piece Material center section Aluminium, Stainless Steel -
描述
The Verderair VA-E80 non-metallic combines all advantages of an AODD with the energy-efficiency of an electric driven pump.
